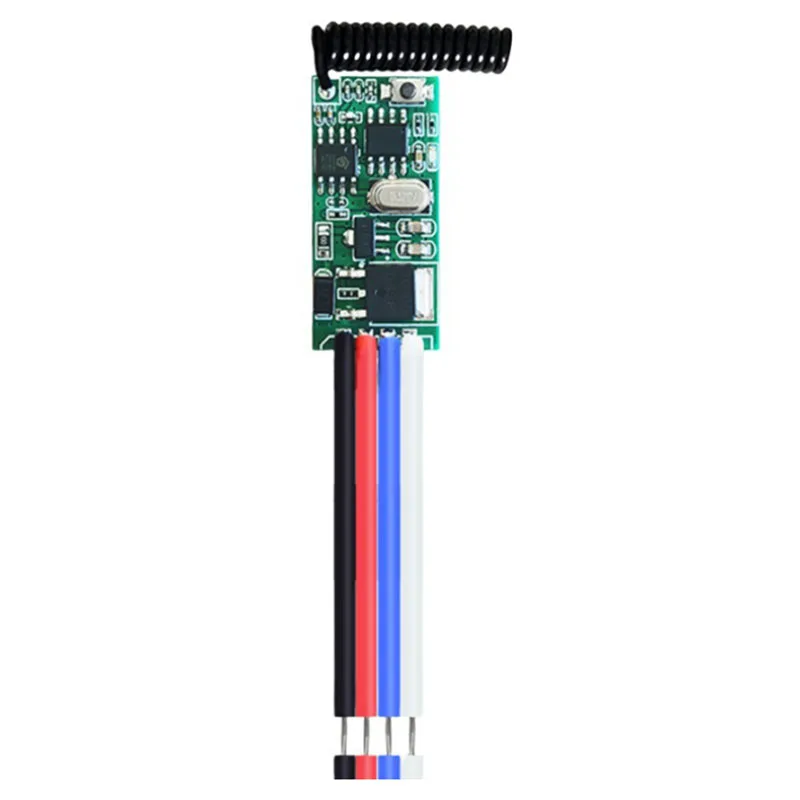

1CH 433mhz 6-24V QIACHIP
- دسته : ماژول - RF & بی سیم و WIFI
- واحد : عدد
- کد محصول: 4353
- وضعیت موجودی : موجوداست جدیدرسید
- 350 افغانی
| تعداد | قیمت |
|---|---|
| 1 | 350 افغانی |
Product Description:

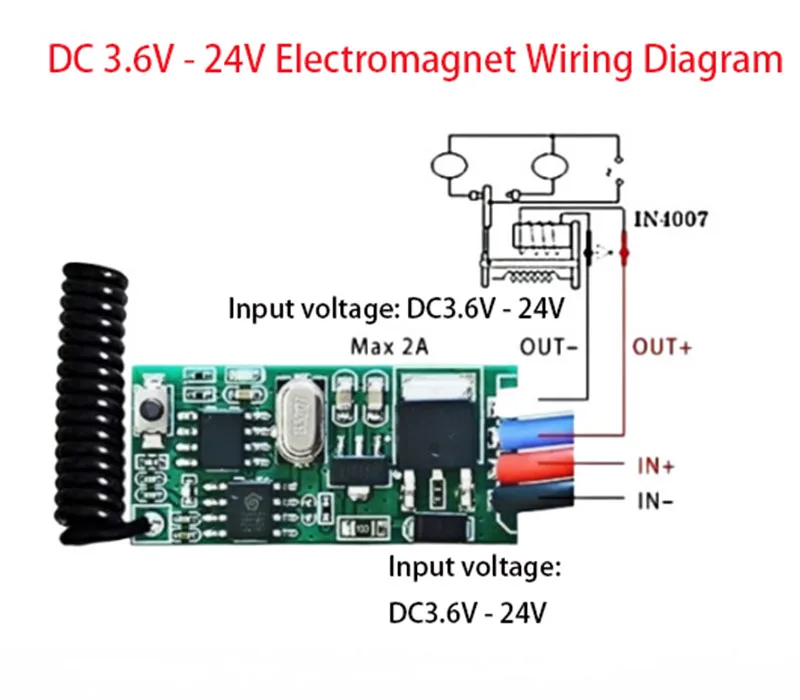

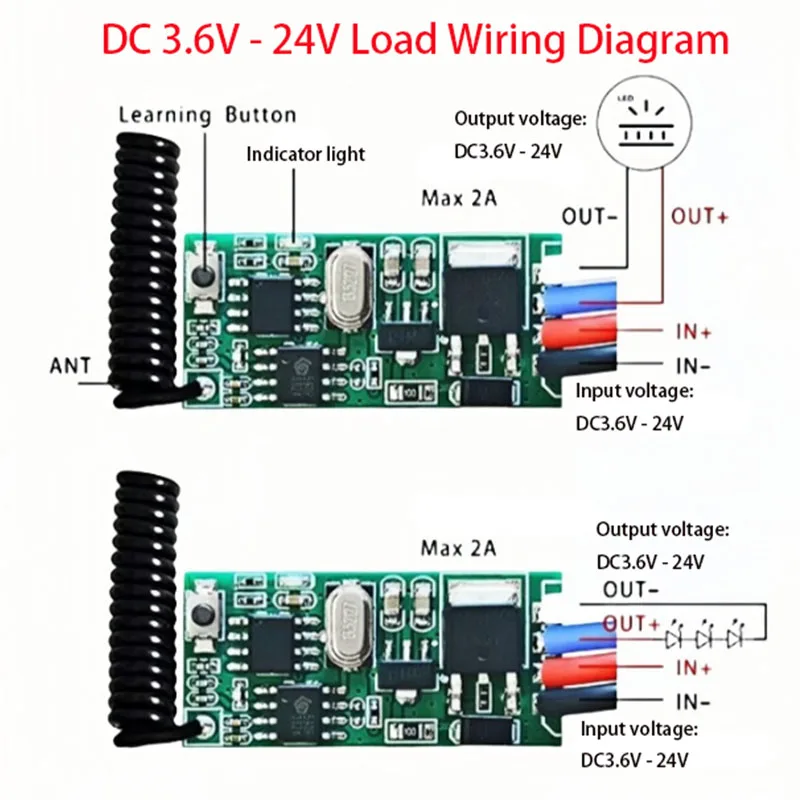

Working Voltage: DC3.6V-DC24V
Wide Range Working Voltage: DC3.6V 4V 4.5V 5V 6V 9V 12V 24V
Static current: 3.5-5mA
Working current: 8mA
Maximum load: 2A
Receiving bandwidth: ± 0.2MHz

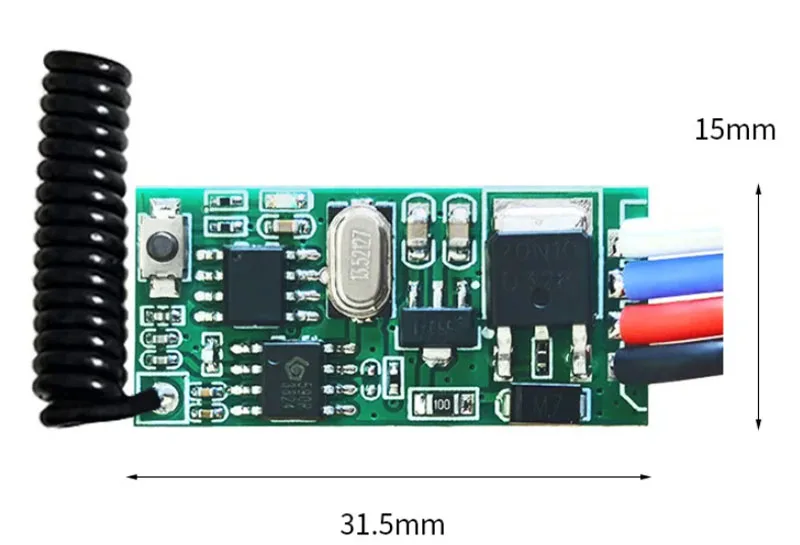

Size: PCB : 31.5*15*8mm
Working Mode: Momentary Toggle Latched Delay time adjustable
Encoding Type: Learning button to add Transmitter
Working model ：
Momentary: press one button is working /ON.loosen your finger on the same button is stop/OFF
Toggle : press one button for one time is working/ON .press the same button again is stop/OFF .
Latched : press button A is working/ON ,press button B is stop/OFF
Delay time : Press remote control A button, the corresponding relay actuates and keeps working until the time out.

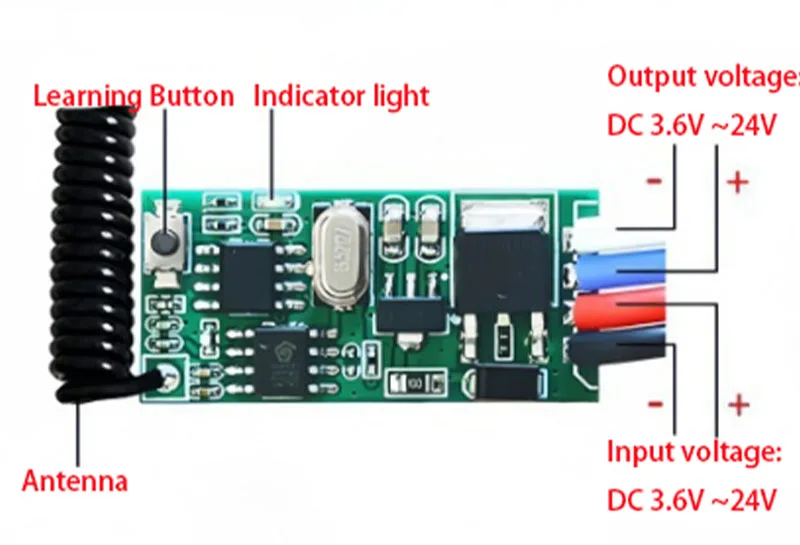

Learn method ：
Input DC3.6V- 24V for the Receiver ,
Momentary: Press the Learning Button 1 times.Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Toggle: Press the Learning Button 2 times.Then press transmitter , the Led indicator flash for 3 times, it mean learning successfully.
Latched: Press the Learning Button 3 times.Then press transmitter A button, the Led indicator flash for 3 times , Then press transmitter B button,the Led indicator flash for 3 times again , it mean learning successfully.
Delay time (5S): Press the Learning Button 4 times.Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Delay time (10S): Press the Learning Button 5 times.Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Delay time (15S): Press the Learning Button 6 times.Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Delay time (20S): Press the Learning Button 7 times.Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Clearing method :
Clear code (code must be cleared before switching modes)
Press the learning button 8 times, and the LED light will turn off. The LED light flashes 5 times, and the code clearing is complete.
pacote inclued:
A:
