ماژول شارژر HX-5S-15A Lithium 5 Cell
- دسته : ماژول - تغذیه - پاور بانک و باتری شارژر
- واحد : عدد
- کد محصول: 3405
- وضعیت موجودی : موجوداست
- 150 افغانی
| تعداد | قیمت |
|---|---|
| 1 | 150 افغانی |
محافظ شارژ باتری 5 سلول HX-5S-15A Lithium 5 Cell Protector، ماژول محافظت از باتری لیتیوم در مقابل Over Charge، Over Discharge و Short Circuit، قابلیت اتصال 5 عدد باتری لیتیومی، ورژن
Electronic system 5S working as a protection of batteries against excessive unloading. This module also assures the function of the battery charger.
It allows you to build a safe battery pack that does not have to be charged with special chargers for li-ion batteries.
The 2-in-1 module was created to keep the cells in the best possible condition, not allowing them to be overcharged or over-discharged.
Short-circuit protection.
Over Charge protection.
Over Discharge protection.
Over Current protection.
Can be used for various 3.7V lithium cells.
Compact size and light weight.
Ensure the safety of the battery.
Dimensions: 98.5x12x3.7mm
Charging voltage: 21V
Continuous discharge current: 15A
Continuous charging current (upper limit): 15A
Delay of protection against excessive charging: 0.5S

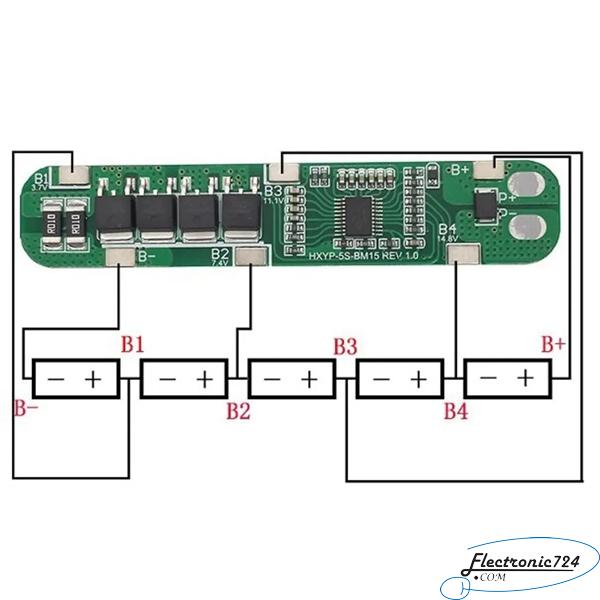

This motherboard is 5 string 3.7 v / 4.2v lithium battery protection board
High current protection board, continuous 15A current
Protection of the board with protection against overcharging, excessive discharge protection, excess current, protection against short circuits.
PCB board size: (approx.) 8.8×1.6 cm / 3.46×0.63 ”
Detailed parameters:
Discharge:
Continuous current discharge: 15A (max)
Momentary discharge current: 25A
Charge:
Charging voltage: 21 volts
Charging current: 15A (max)
Overload Protection:
Over charging it detects: 4.28 ± 05 v
Protect delays: 0.5 sec
Over-oplata release: 4.28 ± 05 v
Excessive discharge of protection:
Excessive discharging detection: 2.55 ± 08 v
Excessive delay detection: 0.1 s
Release the voltage: 2.9 ± 1 v
Short-circuit Protection:
Protect the condition: Cut load
Detect delays: 250uS
Release the state: Cut load
Excess Protection Current:
Voltage detection: 150mV
Detect latencies: 9 ms
Detection current: 30 ± 3A
Release the state: Cut load
Internal Resistance: =20mO
Self-consumption:
Operating current: =30uA
Power sleep: (when over-charge) =10uA
Temperature range: -30- + 80 ?
